Running experiments¶

This documentation section shows how to run the experiments that are described in the thesis of this project.

Robot planner 1: Simple MoveIt planning¶

roslaunch main program1.launch
rosrun kuka_barrett robot_planner1

Robot Planner 2: Simulation layout and reachability experiments¶

To run the experiment 2a: .. code-block:: bash

roslaunch main program1.launch rosrun kuka_barrett robot_planner2a

and to run the experiment 2b run the following commands in different terminals .. code-block:: bash

roslaunch main program3.launch rosrun kuka_barrett robot_planner2b

Robot Planner 3: Trajectory planning¶

3a: Circular trajectories in task space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3a

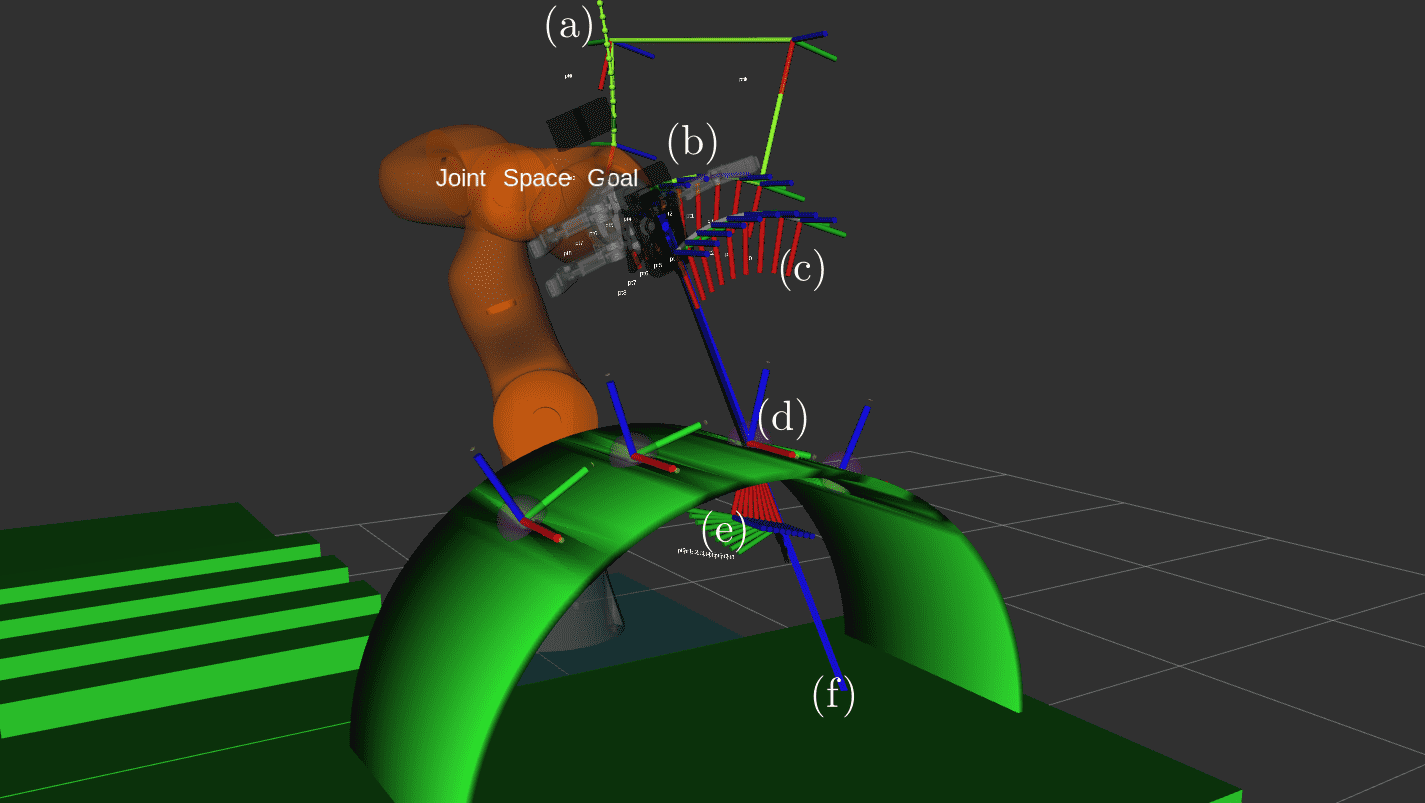

3b: Line segment trajectories in task space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3b

3c: Cubic Spline trajectories in task space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3c

3d: B-Spline trajectories in task space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3d

3e: Polynomial trajectories in joint space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3e

3f: Trajectories in joint space with trapezoidal velocity profile¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3f

3g: Trajectories in joint space with s-curve velocity profile¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3g

3h: Helical trajectories in task space¶

roslaunch main program3.launch
rosrun kuka_barrett robot_planner3h

Robot Planner 4: Simple cube pick-and-place experiment¶

roslaunch main program2.launch
rosrun kuka_barrett robot_planner4

Robot Planner 5: Visual servoing¶

To run the robot planner of this experiment first run the following commands in different terminals

roslaunch main program2.launch
rosrun kuka_barrett robot_planner5

to start the stereoscopic vision run the following launch file. Caution, the following launch files might be CPU and GPU intensive

roslaunch vision stereo.launch

to run the visual servoing services run the following

roslaunch vision visual_servo.launch

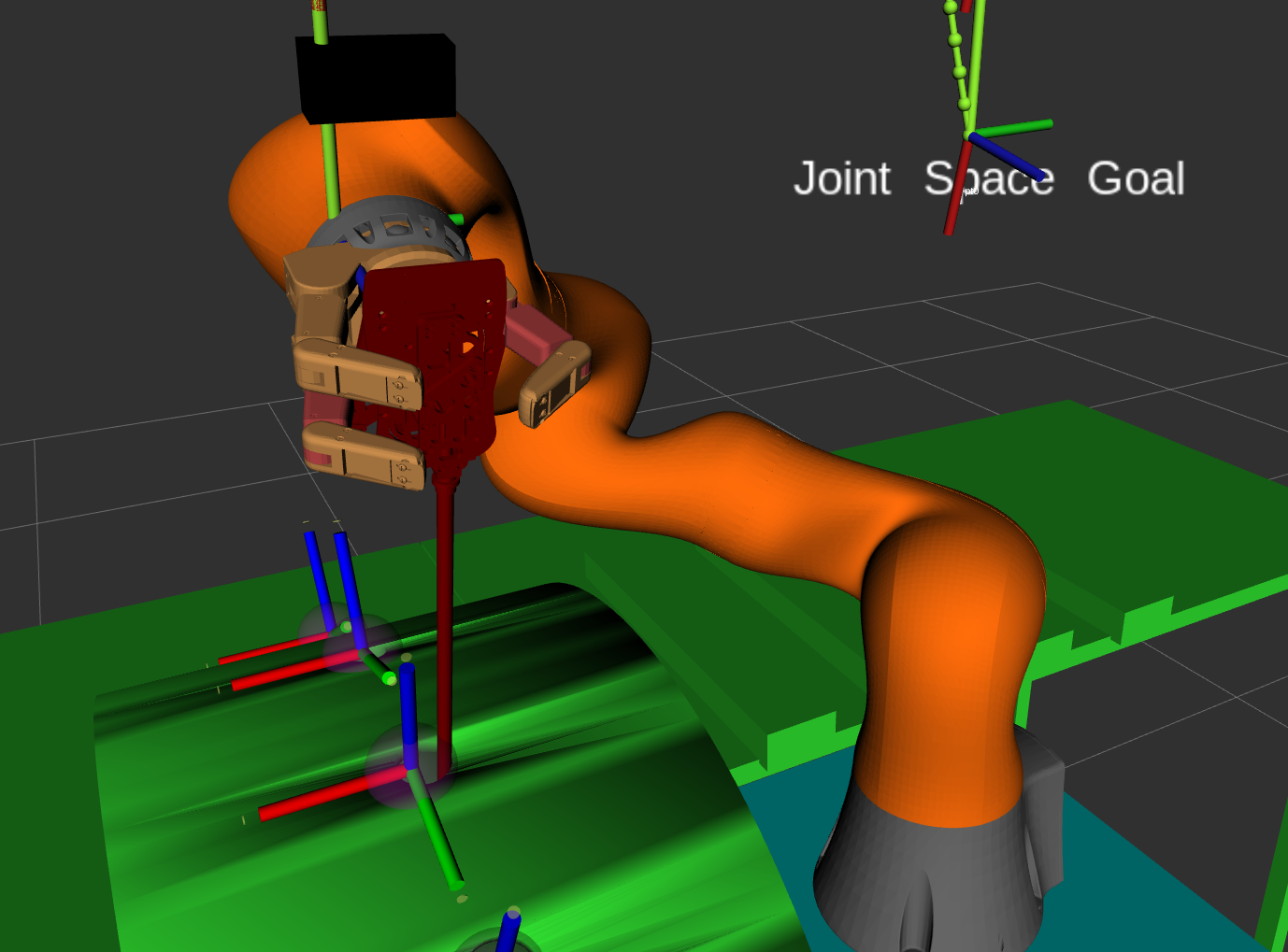

Robot Planner 6: RCM alignment error in insertion and retraction¶

To run the experiment run the folloei g commands in different terminals

roslaunch main program2.launch
rosrun kuka_barrett robot_planner6

To run the node that calculates the fulcrum error in real time, run the following command

rosrun taskspace fulcrum_state_node

to plot the fulcrum error run the following

rosrun rqt_plot rqt_plot /fulcrum/error

to inspect the nodes and topics of this experiment run the following ROS package

rosrun rqt_graph rqt_graph

End-to-end simulation¶

In separate terminals run the following commands

roslaunch main program3_e2e.launch
rosrun vision visual_servo.py
rosrun kuka_barrett robot_planner7.py

or if you want more control over what to run, run the folloeing commands

roslaunch main program3.launch
roslaunch kuka_barrett action_servers.launch
rosrun vision visual_servo.py
rosrun taskspace fulcrum_state_node
rosrun smach_viewer smach_viewer.py
rosrun rqt_plot rqt_plot /fulcrum/error
rosrun kuka_barrett robot_planner7.py

Spawn Surgical tool URDF¶

rosrun gazebo_ros spawn_model -file $(rospack find surgical_tools_description)/urdf/surgical_tool.urdf -urdf -x 1.0 -y 1.0 -z 1.2 -model surgical_tool_test
